Get your boat back on the water sooner and for less with the GM fuel pump Adaptation kit
Products

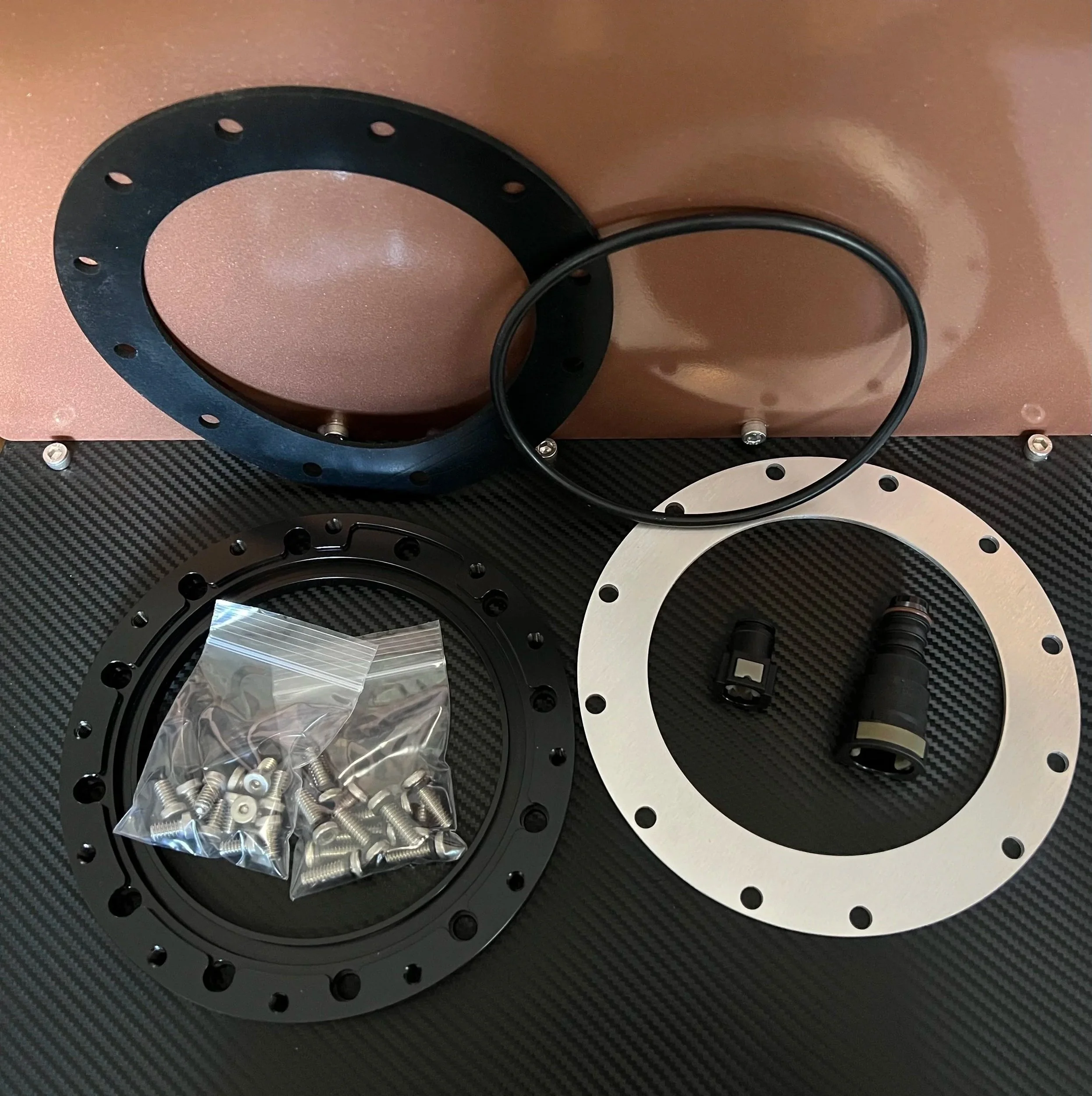

Kit includes: pump module to tank mounting gasket , 12 Stainless sealing washers, 3 Strainers
For use with Millennium Fuel pump modules on Mastercraft boats. May fit Malibu/Axis with Millennium pumps.
(Experiencing shorter than expected service life on supplied tank gasket. Price reduced until an alternative is found. Please use Mastercraft gasket part number 155102 - July 2026)
Kit enables use of GM fuel pump for use in Mastercraft boats previously equipped with Carter/Federal or Millennium pumps. Harness not shown. GM fuel pump module sold separately
Return or return-less system compatible
Incorporates fuel level sender depending on pump selected. Supplied pump harness includes connection for level sender. Included harness is 48” long. If a longer harness is required please contact.
Fuel tank depths and GM pump compatibility:
7.5-10” tank depth use 2006 Escalade, Yukon, Tahoe fuel pump module FG0808, P76262M, 19256621, 88983253, 88983268
11”-14” tanks depths use 2005 Silverado 3500 8.1 fuel pump module MU1417, 19369998, FG0383, FG0384
10.75”-13.5” tank depth use 2006 Express 6.0 fuel pump module FG0402, M10030, E3678M, 19133516, 19153042, 19303381, 19303384, 19331946, 19331949, 25366555, 25371045, 25384425, 25384426
Please note that this item requires completion of Liability Waiver and Release Form at checkout
(Experiencing shorter than expected service life on supplied tank gasket. Price reduced until an alternative is found. Please use Mastercraft gasket part number 155102 - July 2026)

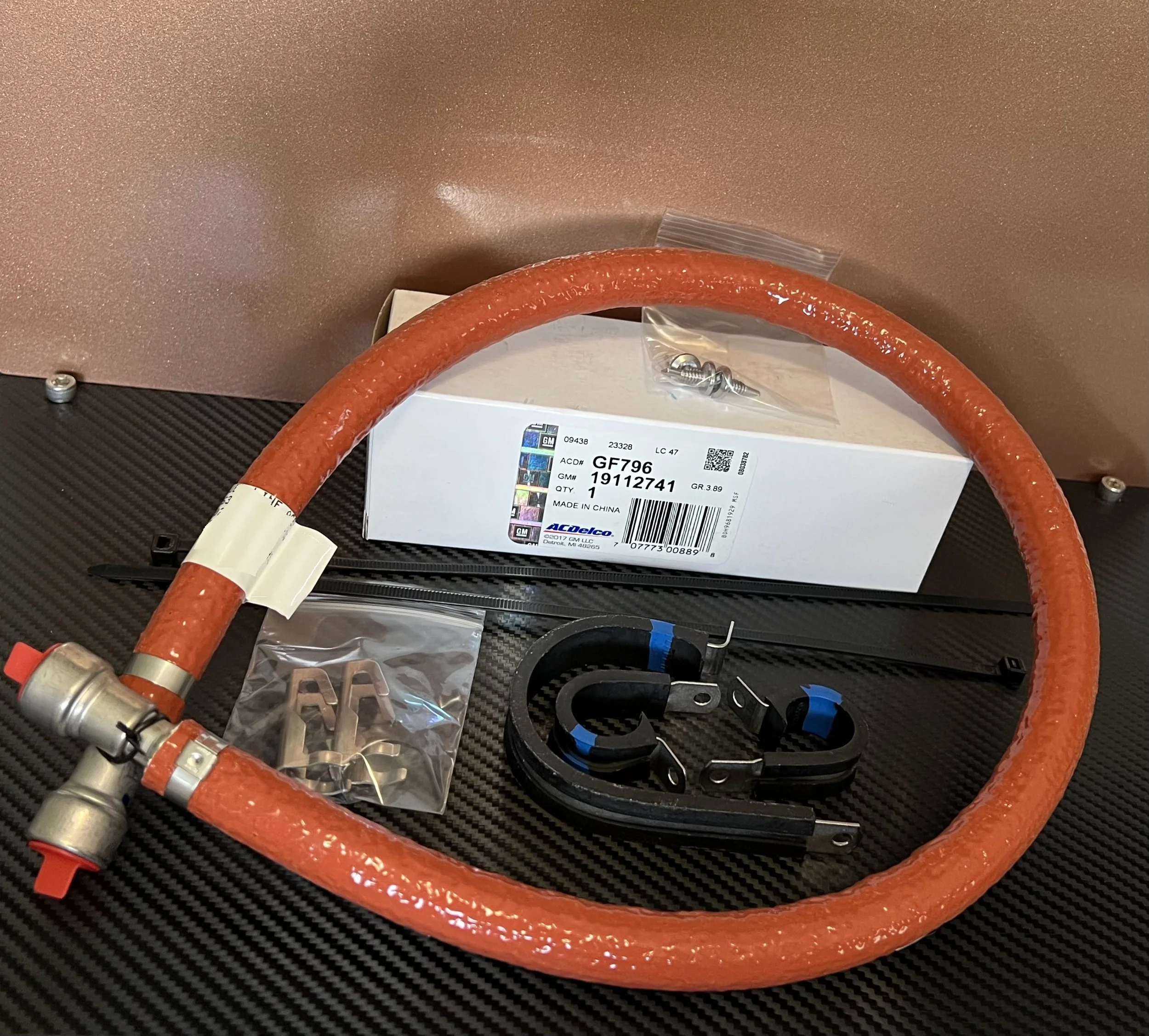

Protect your engine with Iridium Technologies secondary fuel filtration kit. The OE Millennium Pump module inlet strainer is rated at 31 Micron, with no Filtration after the fuel pump to protect fuel injector passages from becoming blocked. EFI engines typically require 10-20 Micron filtration post fuel pump. This filter kit utilizes a filter designed for easy replacement and use for EFI engines. Includes Filter, Line clamps, screws, and line retainers. 3/8” quick connect hose connections.
Please note that this item requires completion of Liability Waiver and Release Form at checkout
